Description
Automatic single- and double-wire cutting and stripping machine.

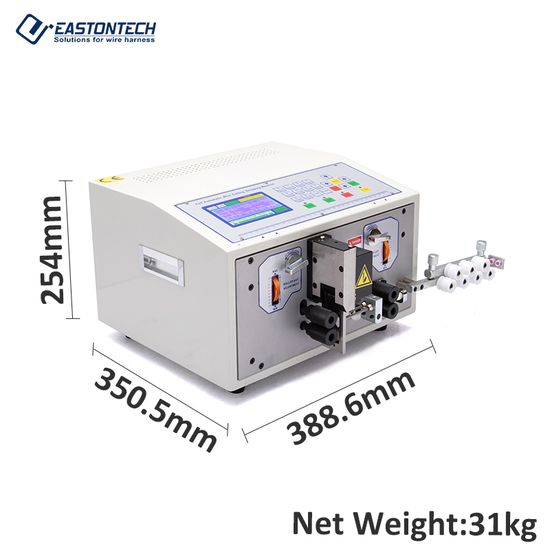

| Model | EW-02B |
|---|---|
| Single line | 0.1–4.5 mm² (32–11 AWG) |
| Two lines | 0.1–2.5 mm² (32–13 AWG) |
| Cutting length | 1–9999 mm |
| Cutting length tolerance | 0.002×L |
| Stripping length | Side I 0–35 mm; Side II 0–15 mm |
| Max guide tube | 6 mm |
| Productivity | 83–167 pcs/min |
| Noise | <70 dB(A) |
| Power supply | 110/220 V 50/60 Hz |
| Power | 200 W |
| Weight | 31 kg |
| Dimension | 388.6 × 350.5 × 254 mm |
| Wire material | PVC, fiberglass, Teflon, silicone |
| Blade | Tungsten steel |
| Programs | About 100 memory programs; half / full / multi-step strip |
Contact us for shipping, configuration, and bulk pricing.
